人工智能消防机器人 / Artificial Intelligence Fire-fighting Robot

产品简介
可与现场安装的多波段探测器和光纤探测系统配合联动,形成探测网络。配有取水轨道,使人工智能消防机器入可以在轨道上移动取水灭火,可以实现待续大流是喷射,以达到消防员到达现场的效果。通过两边固定的激光传感器系统会自动显示堵车位置,并指令人工智能消 防机器人前往,使—些碰撞事故在未产生明火前得到控制。通过人工智能消防机器人上安装的摄像头和喇叭,交警或管理员可指挥疏导交通,方便决速处理事故,无险消时可充当电子警察巡航。
产品简介

产品简介

可与现场安装的多波段探测器和光纤探测系统配合联动,形成探测网络。配有取水轨道,使人工智能消防机器入可以在轨道上移动取水灭火,可以实现待续大流是喷射,以达到消防员到达现场的效果。通过两边固定的激光传感器系统会自动显示堵车位置,并指令人工智能消   防机器人前往,使—些碰撞事故在未产生明火前得到控制。通过人工智能消防机器人上安装的摄像头和喇叭,交警或管理员可指挥疏导交通,方便决速处理事故,无险消时可充当电子警察巡航。

Product Introduction

It can cooperate with multi band detector and optical fiber detection system installed on site to form detection network. Equipped with water intake track,the intelligent fire-fighting machine can move along the track to get water and put out the fire. It can achieve the effect of continuous large flow spray so as to achieve the effect of firefighters arriving at the scene. Through the fixed laser sensor system on both sides, the traffic jam position will be automatically displayed, and the artificial intelligence fire fighting robot will be instructed to go, so that some collision accidents can be controlled before the open fire. Through the camera and horn installed on the artificial intelligence fire fighting robot, the traffic police or administrators can direct and guide the traffic, which is convenient to deal with the accident at a certain speed, and can act as the electronic police cruising when there is no danger.

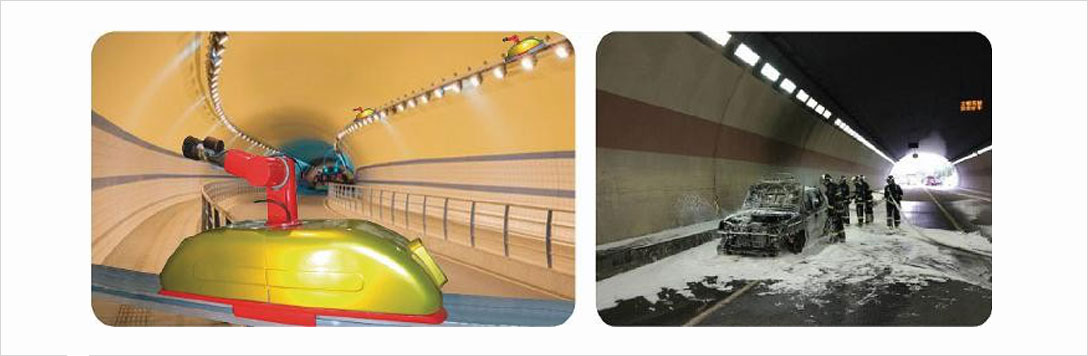

应用场景

Application scenarios


产品参数

技术参数

外形尺寸:1200mm*380mm*560mm 额定工作压力:0.4-1.0MPa 工作流量:8-20L/S

射流状态:直充射程:36-40m

喷雾:喷雾角 120° 车辆自重 80kg

最高移动速度:1.0-1.5m/s

电池单次充电工作时间:6 小时整体最大功率:400W

车辆电压:48V

通讯方式:RS-485、以太网扬声器功率:20W

车辆工作温度:60 度(具有超温自启动散热功能)

Technical parameters

Dimension: 1200mm * 380mm * 560mm rated working pressure: 0.4-1.0mpa

Work flow: 8-20L/ S

Jet state: Direct charging Range: 36-40m

Spray: Spray angle 120 degree vehicle weight 80kg Maximum moving speed: 1.0-1.5m/s

Working time of single charge of battery: 6 hours Overall maximum power: 400W

Vehicle voltage: 48V

Communication mode: RS-485, Ethernet Speaker power: 20W

Vehicle working temperature: 60℃ (with over temperature self start cooling function)
